2022-08-08 11:05:33 #9324
bala
參與者

您好，不好意思又打擾了，

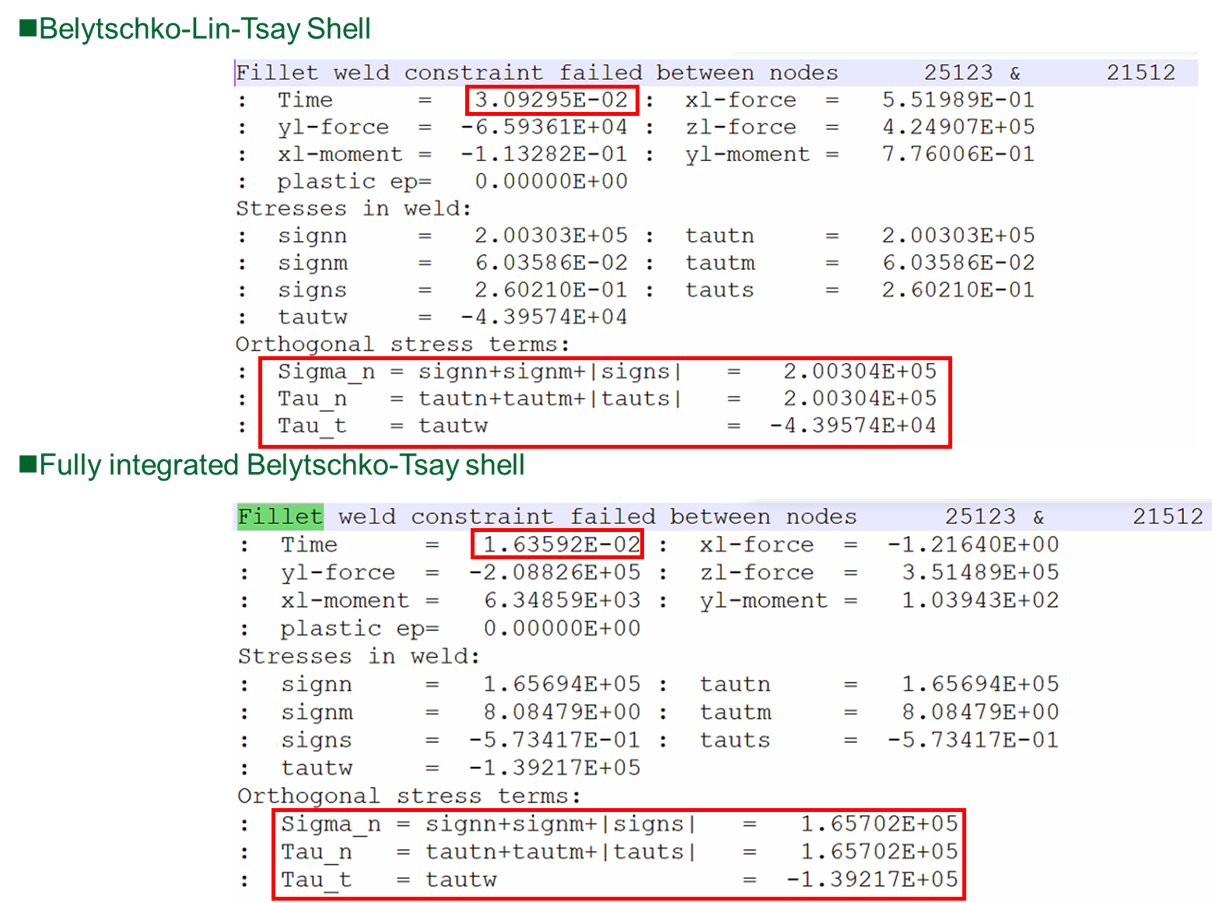

此次是依照同一個邊界條件設置，

但單點積分跟全積分的數值差非常多，且斷裂的時間也差非常多

雖然知道單點積分跟全積分肯定會有差異，

但是差很多還是覺得有點怪怪的

而且全積分失效應力計算之後，就不是我們所設定的數值367mpa

這點也不曉得是為什麼?

再麻煩您們了
